AL-KO Caravan Side Lift Jack Kit, 2000kg

•
•
•

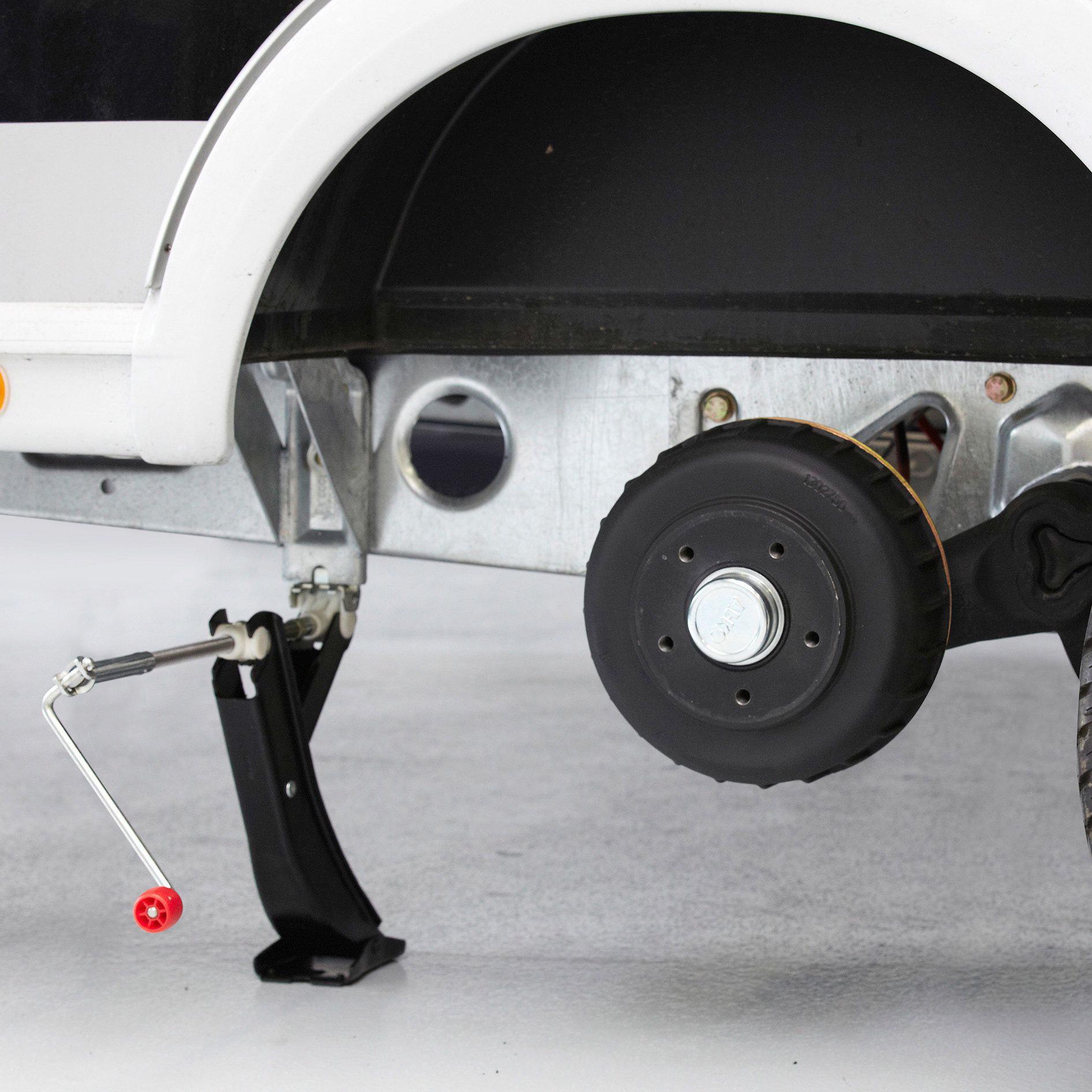

Genuine Al-Ko Replacement Side Lift Jack Kit (Up to 2000kg)

This kit includes a side lift jack, two pairs of galvanized steel brackets, and all necessary fixings for mounting to the Al-Ko chassis using existing mounting holes.

Key Features:

- Each bracket supports up to 1000kg, making this kit suitable for caravans with a maximum weight of 2000kg.

- Compatible only with the Al-Ko 2000kg side lift jack or a 2000kg scissor jack using dedicated jacking points.

Specifications:

Max Load Capacity: 1000kg per bracket
Suitable for Trailers with Max Permitted Total Weight: 2000kg
Starting Height: 85mm
Lifting Range: 290mm
Final Height: 375mm
Weight: 5.5kg

Contents:

1x Side Lift Jack
2x Corner Supports
2x Jack Stands with Insert Opening
1x User Manual

AL-KO Part Number: 1222530 / 1 222 530
EAN: 4003718034981
